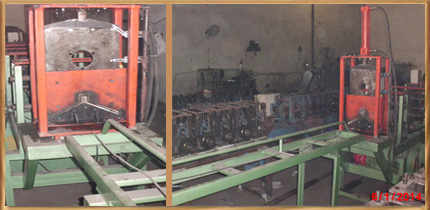

1. ROLL FORMING - profil 'reng'
Spesifikasi :
1. Electric Motor : 3 Kw ( 380V - 3 phase - 4 pole -1400 rpm )
2. Dimension (LxWxH) : 3500 x 600 x 1200 mm
3. Roll forming speed : 12-18 m/min - Q’ty of rollers : 8 – 10
4. Max .thickness of steel : 0.4 mm – 0.8 mm
( Material GI, GALVALUME)
5. Cutting dies : SKD11- JIS - Rollers : Alloy steel SSC45,
6. Rolling transmission and cutting system : Hydraulic
7. Weight : 1.600 kg ( max)
Spesifikasi : 1. Electric Motor : 3 Kw ( 380V - 3 phase - 4 pole -1400 rpm )
2. Dimension (LxWxH) : 3500 x 600 x 1200 mm
3. Roll forming speed : 12-18 m/min - Q’ty of rollers : 8 – 10
4. Max .thickness of steel : 0.4 mm – 0.8 mm
( Material GI, GALVALUME)
5. Cutting dies : SKD11- JIS - Rollers : Alloy steel SSC45,
6. Rolling transmission and cutting system : Hydraulic
7. Weight : 1.600 kg ( max)

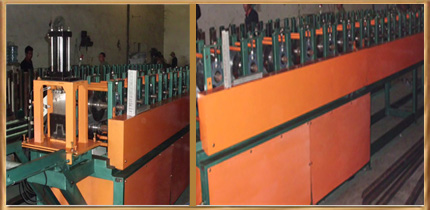

2. ROLL FORMING - profil 'UK'
Spesifikasi :
1. Electric Motor : 7.5Kw ( 380V - 3 phase - 4 pole -1400 rpm )
2. Dimension (LxWxH) : 4200 x 600 x 1200 mm
3. Roll forming speed : 12-18 m/min - Q’ty of rollers : 14 – 16
4. Max .thickness of steel : 0.4 mm – 0.8 mm
( Material GI, GALVALUME)
5. Cutting dies : SKD11- JIS - Rollers : Alloy steel SSC45,
6. Rolling transmission and cutting system : Hydraulic
7. Weight : 1.800 kg ( max)
Spesifikasi : 1. Electric Motor : 7.5Kw ( 380V - 3 phase - 4 pole -1400 rpm )
2. Dimension (LxWxH) : 4200 x 600 x 1200 mm
3. Roll forming speed : 12-18 m/min - Q’ty of rollers : 14 – 16
4. Max .thickness of steel : 0.4 mm – 0.8 mm
( Material GI, GALVALUME)
5. Cutting dies : SKD11- JIS - Rollers : Alloy steel SSC45,
6. Rolling transmission and cutting system : Hydraulic
7. Weight : 1.800 kg ( max)
3. ROLL FORMING - profil 'C ' / Usuk
Spesifikasi :
1. Electric Motor : 5 Kw ( 380V - 3 phase - 4 pole -1400 rpm )
2. Dimension (LxWxH) : 4000 x 600 x 1200 mm
3. Roll forming speed : 12-18 m/min - Q’ty of rollers : 10 – 12
4. Max .thickness of steel : 0.4 mm – 0.8 mm
( Material GI, GALVALUME)
5. Cutting dies : SKD11- JIS - Rollers : Alloy steel SSC45,
6. Rolling transmission and cutting system : Hydraulic
7. Weight : 1.200 kg ( max)
Spesifikasi : 1. Electric Motor : 5 Kw ( 380V - 3 phase - 4 pole -1400 rpm )
2. Dimension (LxWxH) : 4000 x 600 x 1200 mm
3. Roll forming speed : 12-18 m/min - Q’ty of rollers : 10 – 12
4. Max .thickness of steel : 0.4 mm – 0.8 mm
( Material GI, GALVALUME)
5. Cutting dies : SKD11- JIS - Rollers : Alloy steel SSC45,
6. Rolling transmission and cutting system : Hydraulic
7. Weight : 1.200 kg ( max)

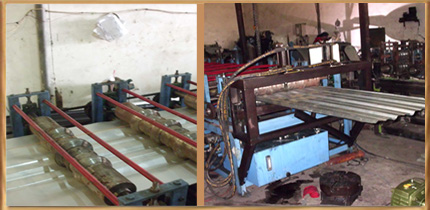

4. ROLL FORMING - profil atap / spandek
Spesifikasi :
1. Electric Motor : 10 Kw ( 380V - 3 phase - 4 pole -1400 rpm )
2. Dimension (LxWxH) : 6000 x 1200 x 1200 mm
3. Roll forming speed : 10-12 m/min - Q’ty of rollers : 14 – 16
4. Max .thickness of steel : 0.4 mm – 0.8 mm
( Material GI, GALVALUME)
5. Cutting dies : SKD11- JIS - Rollers : Alloy steel SSC45,
6. Weight : 2.200 kg ( max)
Spesifikasi : 1. Electric Motor : 10 Kw ( 380V - 3 phase - 4 pole -1400 rpm )
2. Dimension (LxWxH) : 6000 x 1200 x 1200 mm
3. Roll forming speed : 10-12 m/min - Q’ty of rollers : 14 – 16
4. Max .thickness of steel : 0.4 mm – 0.8 mm
( Material GI, GALVALUME)
5. Cutting dies : SKD11- JIS - Rollers : Alloy steel SSC45,
6. Weight : 2.200 kg ( max)
5. ROLL FORMING - customized profil
Spesifikasi :
1. Electric Motor : 5 Kw ( 380V - 3 phase - 4 pole -1400 rpm )
2. Dimension (LxWxH) : 4000 x 600 x 1200 mm
3. Roll forming speed : 12-18 m/min - Q’ty of rollers : 10 – 12
4. Max .thickness of steel : 0.4 mm – 0.8 mm
( Material GI, GALVALUME)
5. Cutting dies : SKD11- JIS - Rollers : Alloy steel SSC45,
6. Weight : 1.400 kg ( max)
Spesifikasi : 1. Electric Motor : 5 Kw ( 380V - 3 phase - 4 pole -1400 rpm )
2. Dimension (LxWxH) : 4000 x 600 x 1200 mm
3. Roll forming speed : 12-18 m/min - Q’ty of rollers : 10 – 12
4. Max .thickness of steel : 0.4 mm – 0.8 mm
( Material GI, GALVALUME)
5. Cutting dies : SKD11- JIS - Rollers : Alloy steel SSC45,
6. Weight : 1.400 kg ( max)
6. ROLL FORMING - customized profil
Spesifikasi :
1. Electric Motor : 15 Kw ( 380V - 3 phase - 4 pole -1400 rpm )
2. Dimension (LxWxH) : 8000 x 1000 x 1200 mm
3. Roll forming speed : 6-8 m/min - Q'ty of rollers : 20
4. Max. thickness of steel : 3 mm ( Material plate ASTM-36)
5. Cutting dies : SKD11- JIS - Rollers : Alloy steel SSC45,
6. Total Weight : 6.200 kg ( max)
Spesifikasi : 1. Electric Motor : 15 Kw ( 380V - 3 phase - 4 pole -1400 rpm )
2. Dimension (LxWxH) : 8000 x 1000 x 1200 mm
3. Roll forming speed : 6-8 m/min - Q'ty of rollers : 20
4. Max. thickness of steel : 3 mm ( Material plate ASTM-36)
5. Cutting dies : SKD11- JIS - Rollers : Alloy steel SSC45,
6. Total Weight : 6.200 kg ( max)
